Corsair FRAME 4000D Modular – Quick Review

Corsair FRAME 4000D Modular – Recently, as computer component design trends have undergone several changes, such as increasingly oversized graphics cards and processors requiring more efficient cooling, resulting in massive heatsinks, the case itself seems to be a less-noticed element, having to adapt to solve multiple challenges simultaneously.

Typically, some mainstream PC cases on the market are gradually showing limitations in airflow due to their "glass cage" design, or becoming more difficult to assemble due to their cramped design within small volumes.

Seizing this opportunity, Corsair launched the FRAME 4000D Modular series, designed with a focus on modern components and modularity, offering users high customization options within a familiar chassis design, broad compatibility with various components, and a relatively affordable price point for starting in mid-to-high-end builds.

So, what are the special features of this PC case waiting to be discovered? Let's find out together with tipsplay.net in this unboxing!

Corsair FRAME 4000D Modular – Easy to build and customize!

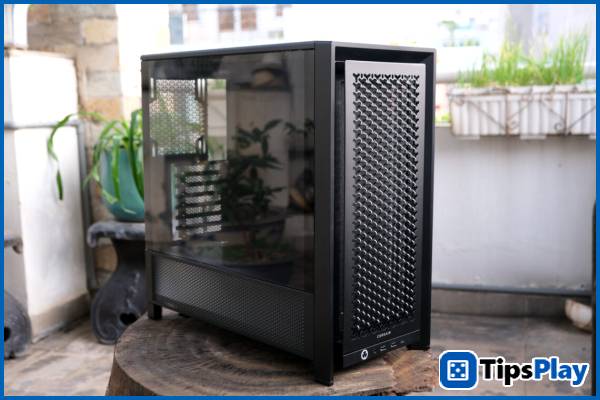

Introduced as a case that 'redefines' the 4000D series launched nearly five years ago, the Corsair FRAME 4000D Modular, while retaining the familiar Mid-Tower case design with its transparent side panel, offers valuable upgrades internally, from assembly and customization experience to improved cooling and connectivity.

Among the product models, the 'barebone' version of the Corsair FRAME 4000D Modular reviewed in this article only comes with the case and custom accessories, compared to the 'RS' version which includes three standard RS120 fans and the 'RS ARGB' version which includes three RS120 ARGB fans.

Upon first handling, the Corsair FRAME 4000D Modular makes a strong impression with its weight and solid build quality, largely due to its frame and casing being entirely constructed from high-strength steel. However, the tempered glass front panel is somewhat different, divided into two sections with a power supply tray window, offering an additional ventilation option during installation.

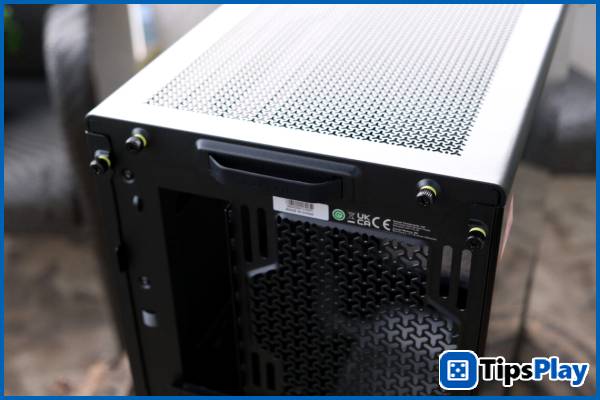

On the sides, the Corsair FRAME 4000D Modular uses a screwless panel fixing system similar to the 3500X series, which is then further secured by prominent gold-plated washers on the back, offering a certain degree of flexibility in assembly when changing configurations while still securely holding components when needed.

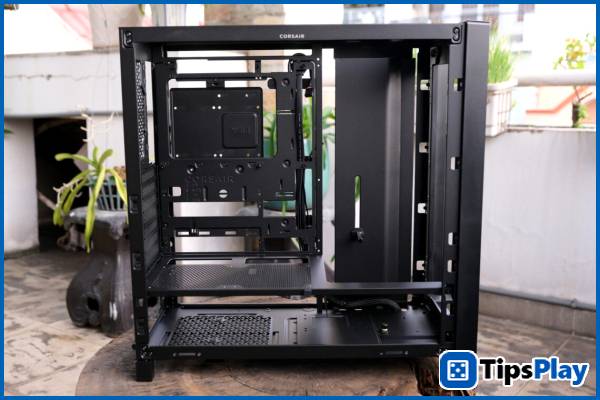

Upon disassembling the four panels, the Corsair FRAME 4000D Modular reveals an extremely spacious interior with support for E-ATX motherboards and the most powerful graphics cards currently available, all while still having room for two 360mm radiators and numerous locations for reservoirs, pumps, and piping for custom water cooling configurations.

In configurations using air cooling, the case features a ventilated design with the ability to draw air from four directions – front, top, rear, and side – allowing users to flexibly choose the optimal airflow configuration through 12 120mm fan mounting locations.

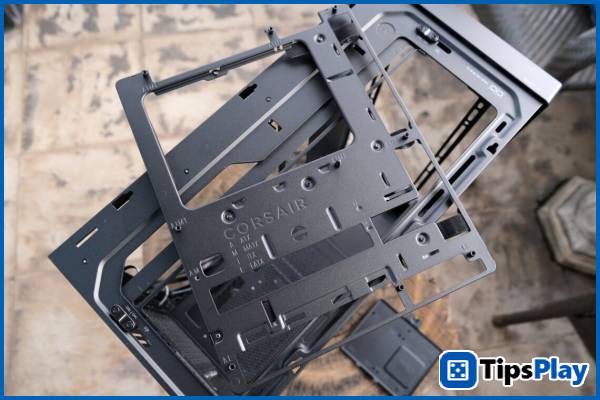

During installation, the most impressive aspect of the Corsair FRAME 4000D Modular was its high degree of customization with removable and replaceable parts, from the motherboard frame that facilitates easy installation, the cable management shield that can be replaced with a fan frame, to the removable power supply tray that can be swapped for custom 3D-printed designs, and the PCIe frame that can be rotated vertically to 'show off' the graphics card.

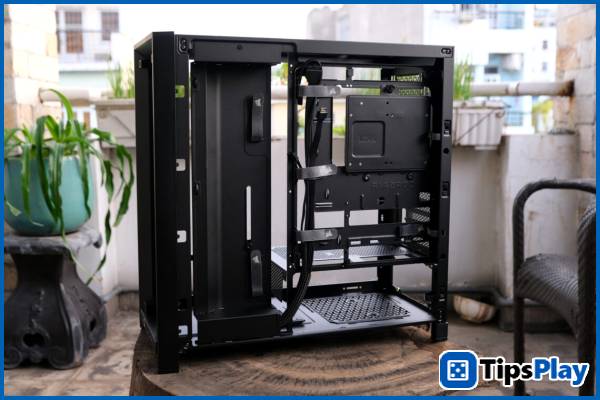

In the two accessory trays inside, Corsair has even pre-installed magnetic mounting points for the iCUE LINK central controller, along with screw mounting points to support SSD and HDD installation, or even reservoirs in configurations using custom water cooling.

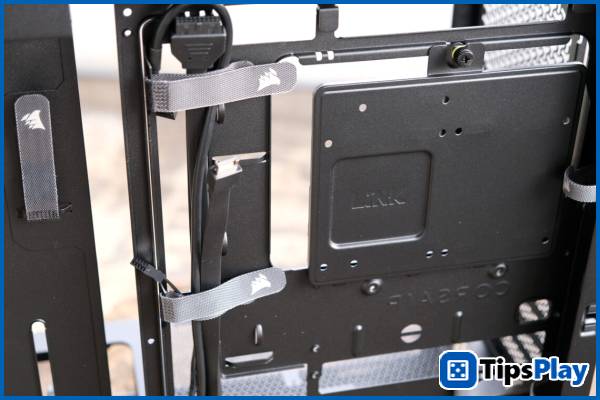

In addition, Corsair has significantly improved the installation experience for both beginners and professionals with simple yet essential accessories such as a large number of Velcro straps for easy cable management, GPU anti-sagging bars, spacious areas for easy cable installation and setup, and the inclusion of the InfiniRail rail system.

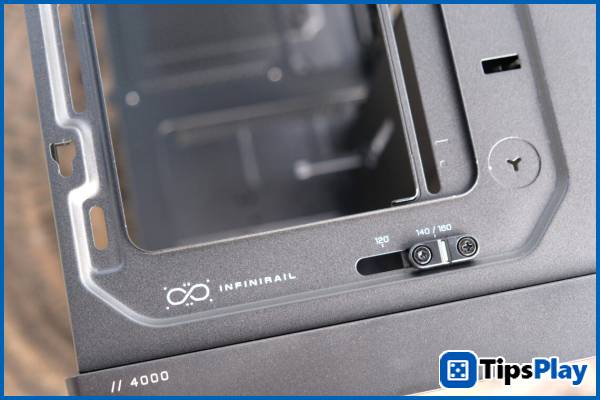

Compared to the InfiniRail sliding rail system on the 'super case' 9000D, the rails equipped on the Corsair FRAME 4000D Modular can be considered a 'simplified' version, with the ability to adjust fan mounting positions between 120mm and 140/160mm, or up to 200mm on the front, instead of the 'full version' which allows for extended rails for greater assembly flexibility.

Compared to the conventional design found in most current PC cases, the InfiniRail system minimizes obstruction in front of the fans during installation, thereby optimizing airflow into the case. Testing with the Corsair Nautilus 360 RS ARGB water cooler, the InfiniRail system provided an easy installation experience thanks to clearly marked screw points and a spacious design that allows for neat cable management without hindering connections.

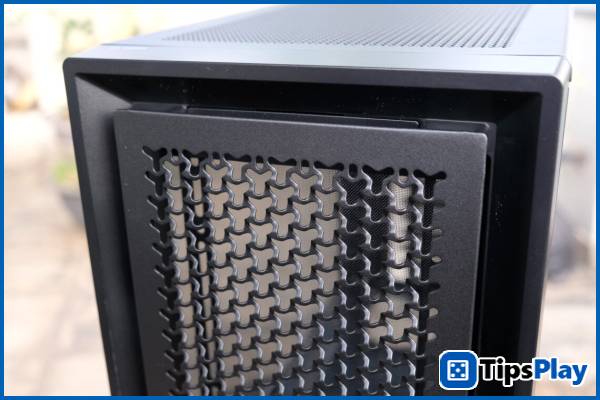

Similar to its predecessor, the 4000D series, the front of the Corsair FRAME 4000D Modular features a removable 'faceplate' that can be attached via four screwless clips, along with a magnetic dust filter with a small mesh size to prevent micro-dust from 'accidentally' escaping through the fan's airflow.

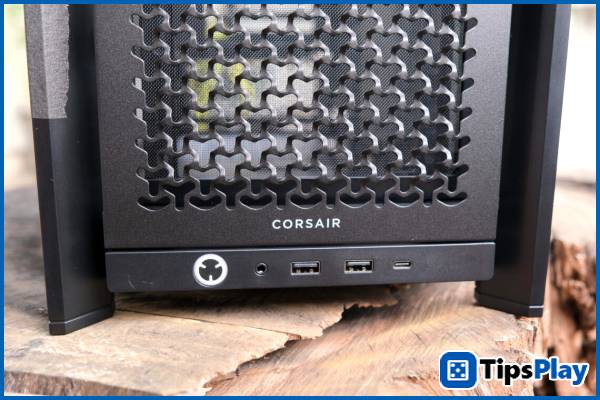

The I/O ports have also been moved to the front, supporting one USB 3.2 Gen 2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and an audio input/output port.

However, the Corsair FRAME 4000D Modular 's front panel appears to be a complete upgrade compared to the 4000D series, being made of metal instead of the previous plastic material, with the same unique embossed cooling fins for improved airflow.

According to Corsair, the expandability of the case is something to watch out for in the future, as the company plans to offer more different case designs to support easy case shape changes, and the front I/O ports can also be upgraded and replaced with higher-end components.

Overall, the Corsair FRAME 4000D Modular is a worthwhile upgrade from the 4000D series, offering many modern features at a price that isn't too high compared to other mid-range to high-end cases on the market.

Summary

Overall, the Corsair FRAME 4000D Modular is an attractive case option for a wide range of users, from beginners to professionals who frequently change components, thanks to its convenient installation features and meticulous design.

Even when starting with mid-to-high-end systems, the Corsair FRAME 4000D Modular can be considered a long-term companion thanks to its wide compatibility with various components and its design that allows for future upgrades and customization.
