MSI MPG X870E CARBON WIFI – Hands-on and Quick Review

MSI MPG X870E CARBON WIFI – After a long period of support for AM4, the AMD ecosystem and AM5 seem to have become a reliable and worthwhile choice for long-term investment, guaranteeing a motherboard model can be supported for at least several years across multiple CPU generations.

For that reason, when choosing a motherboard with an AMD chipset, users often consider investing more heavily to plan for future upgrades, with many options between the budget-friendly A series, the mainstream B series, and the high-end X series, all available in both standard and Extreme versions.

Positioning itself in that context, the MSI MPG X870E CARBON WIFI is launched with the flagship X870E chipset from Zen 5, offering full PCIe Gen 5 support, quad-speed USB ports, and the most advanced connectivity technologies, yet it sits in the mid-range to upper-mid-range segment according to MSI's classification.

Given that position, can the MSI MPG X870E CARBON WIFI meet the most demanding needs of gamers, such as its ability to handle the recently released Ryzen 9 9950X3D processor, and other AM5 series processors in the future?

Let's unbox and find out more with tipsplay.net in this article!

MSI MPG X870E CARBON WIFI – Packed with premium features!

Among MSI's current gaming motherboard lines, if MAG is designed to meet the needs of mainstream gamers, MEG is for high-end users requiring top-tier performance and design, and MPG can be considered a hybrid product line in the mid-range to upper-mid-range segment.

Therefore, the MSI MPG X870E CARBON WIFI motherboard may not be overly flashy in terms of design, but it compensates with a range of advanced features, high-quality components, improved durability, and highly focused software for optimizing configuration performance.

On the back, MSI clearly lists the most notable technologies and overall design of the motherboard, notably including Wi-Fi 7, Bluetooth 5.4, dual LAN 5G + 2.5G ports, and USB 4 support with transfer speeds up to 40Gbps.

Besides the upgraded components, the MSI MPG X870E CARBON WIFI also offers some minor improvements over the MPG Z690 CARBON WIFI version, including a smart M.2 lock with the addition of a screwless EZ M.2 Shield Frozr II heatsink cover, and a convenient PCIe slot unlock button.

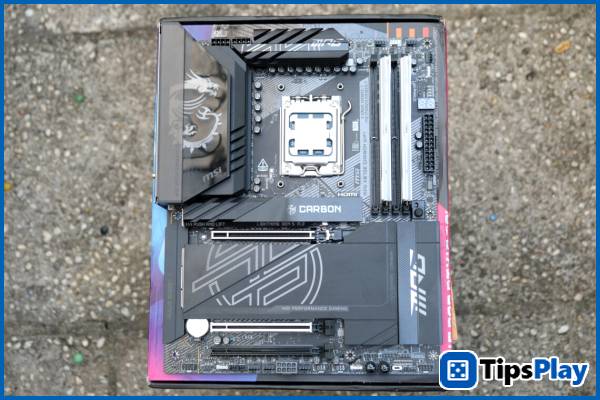

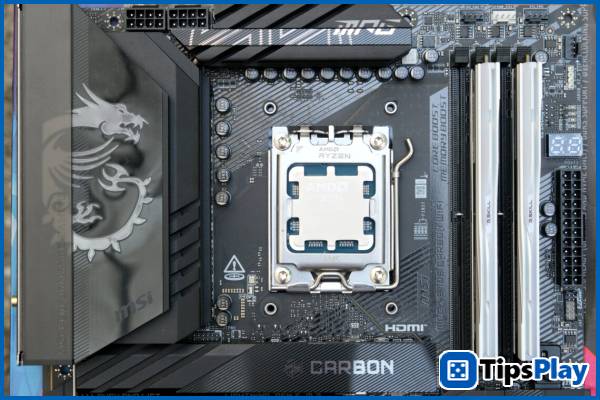

Upon unboxing, the MSI MPG X870E CARBON WIFI motherboard initially boasts a rather imposing design, featuring a spacious ATX size, the characteristic sharp angles of the MPG series, and a chipset heatsink that is even larger than previous models.

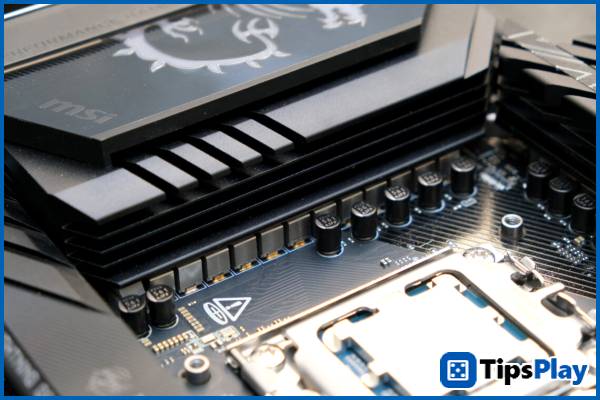

Similar to the version using the Z690 chipset, this motherboard model is still equipped with a 'massive' VRM heatsink to improve system durability and stability under high load, using hidden L-shaped copper heat pipes to increase heat dissipation efficiency between the two heatsinks.

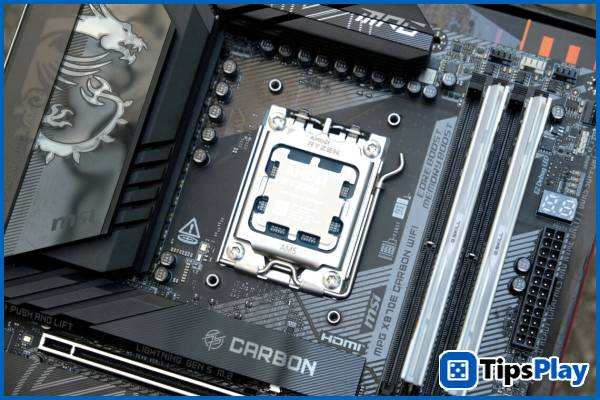

Thanks to the improved power supply and MOSFETs equipped on the MSI MPG X870E CARBON WIFI , users can easily 'challenge' the power of CPUs like the Ryzen 7 9700X through simple overclocking and Power Limit settings in the BIOS to achieve stronger gaming performance on their system.

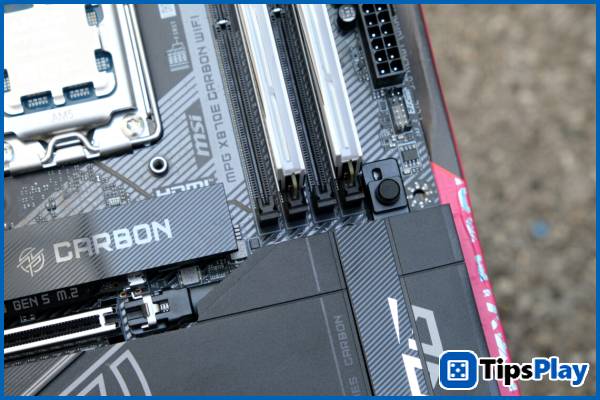

Equipped with the X870E chipset, the MSI MPG X870E CARBON WIFI boasts high compatibility with DDR5 RAM modules reaching speeds up to 8000MT/s using EXPO, complemented by MSI's Memory Boost and Memory Try it! technologies for easier clock speed and memory timing adjustments.

Below, the PCIe slots on the MSI MPG X870E CARBON WIFI are reinforced with steel to protect the connectors from 'oversized' graphics cards like the ASUS TUF RX 9070 XT OC Edition with its three fans and heavy-duty heatsink, partly to help dissipate force in cases that don't have a built-in graphics card mount.

In addition, MSI has equipped the motherboard with a convenient PCIe slot unlock button located on the side, allowing users to remove graphics cards without having to reach deep to unlock them.

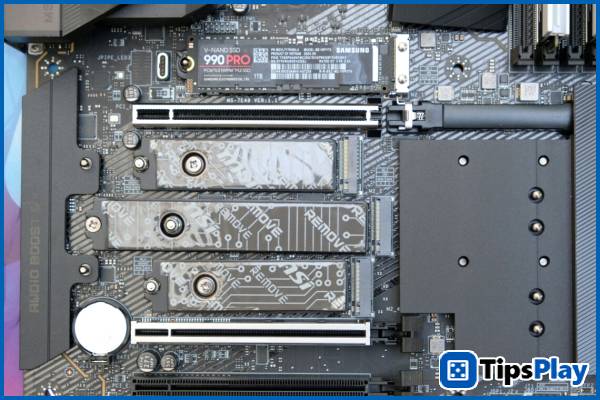

Upon removing the main heatsink, the MSI MPG X870E CARBON WIFI is revealed to be equipped with four M.2 ports, including two high-speed PCIe Gen 5x4 ports, supporting bandwidth up to 16Gbps for a near-instantaneous response time. MSI has also included smart EZ M.2 Clip holders, eliminating the need for screws when installing SSDs.

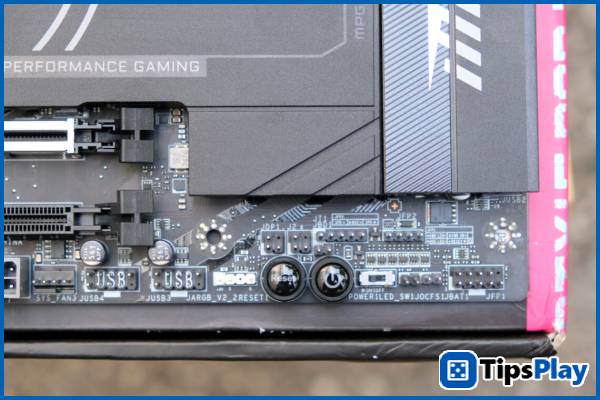

To complement the features equipped on the motherboard, the MSI MPG X870E CARBON WIFI also comes with convenient power and reset buttons underneath, suitable for 'benchtable' configurations or use with open cases, along with a multi-functional 7-segment LED display showing boot status and operating temperature.

In addition, MSI has equipped the motherboard with a range of fan and LED control headers for high-performance configurations, along with the ability to completely disable RGB features via a physical switch.

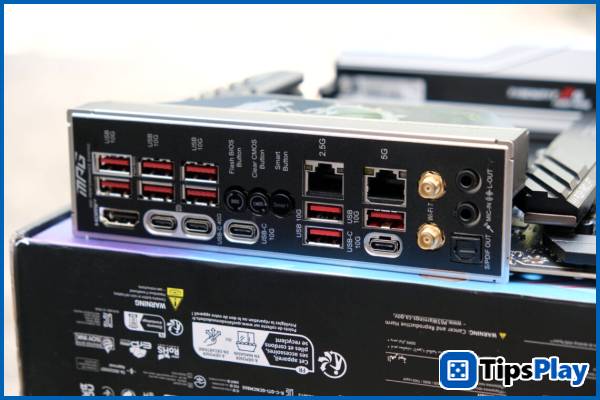

The MSI MPG X870E CARBON WIFI offers a full range of leading connectivity technologies, including a USB 4 Type-C port supporting video output and data transfer speeds up to 40 Gbps, a host of USB 3.2 Type-A and Type-C ports with speeds up to 10 Gbps, a 'duo' of 2.5G and 5G LAN ports, and Wi-Fi 7 wireless connectivity via a convenient plug.

In addition, the motherboard model also includes a series of smart buttons to make troubleshooting easier, such as a CPU-free BIOS flashing feature, a Clear CMOS button for easy system 'reset', and a customizable smart button.

During testing or for gamers who enjoy tinkering, the buttons are considered a valuable tool, as incorrect settings can be easily reset, buttons can be configured for quick reboots, and BIOS updates are convenient when users decide to upgrade their CPU.

Summary

Overall, the MSI MPG X870E CARBON WIFI is a complete and feature-rich motherboard that easily satisfies everyone from casual users to the most demanding gamers. It excels at meeting basic requirements, offers several advanced features appropriately, and boasts robust performance thanks to its high-quality power supply system.

When searching for a long-lasting AM5 motherboard, the MSI MPG X870E CARBON WIFI is an excellent choice, offering a balanced price point and a well-balanced combination of features and design.
